Vim li cas thiaj xaiv peb?
Pab neeg tshaj lij
Liaoning Pengcheng Cable Co., Ltd. tau tsim nyob rau xyoo 1990. Lub tuam txhab R & D pab pawg yog tsim los ntawm cov kws tshaj lij cable hauv kev lag luam, thiab nws tus kheej tau tsim ntau yam khoom siv high-tech tshwj xeeb cable.
Khoom siv Advanced
Pengcheng Cable muaj ib tug xov tooj ntawm thoob ntiaj teb advanced ntau lawm kab, niaj hnub factories, muaj chaw ua si ntawm integrated hlau thiab cable manufacturing tuam txhab.
Kev Tswj Xyuas Zoo
Lub tuam txhab cov khoom lag luam tau dhau ISO9001 / IATF16949 kev tswj hwm qhov system ntawv pov thawj, ISO14001 ib puag ncig kev tswj hwm daim ntawv pov thawj, ISO45001 Kev Tswj Xyuas Kev Noj Qab Haus Huv thiab Kev Tswj Xyuas Kev Nyab Xeeb Kev Nyab Xeeb, ISO10012 kev ntsuas kev tswj hwm ntawv pov thawj thiab lwm yam 8 qhov kev tswj xyuas qhov system ntawv pov thawj.
One-stop Solution
Lub tuam txhab tau cog lus rau kev tshawb fawb & kev tsim kho thiab tsim cov khoom siv hluav taws xob hloov pauv hluav taws xob hluav taws xob hluav taws xob, mica siv cov ntxhia insulated corrugated tooj liab sheathed cables, thiab tshiab high conductivity 8000 series ntawm anti-siab thiab creep-resistant aluminium alloy core interlocking armored fais fab cables, xws li zoo li halogen-dawb tsis muaj pa taws hluav taws xob qis hluav taws xob thiab cov xaim zoo tib yam thiab cable thiab lwm yam kev qhia tag nrho ntawm cov khoom lag luam zoo cable kev tshawb fawb thiab kev tsim kho, tsim, tsim, kev lag luam thiab kev pabcuam.

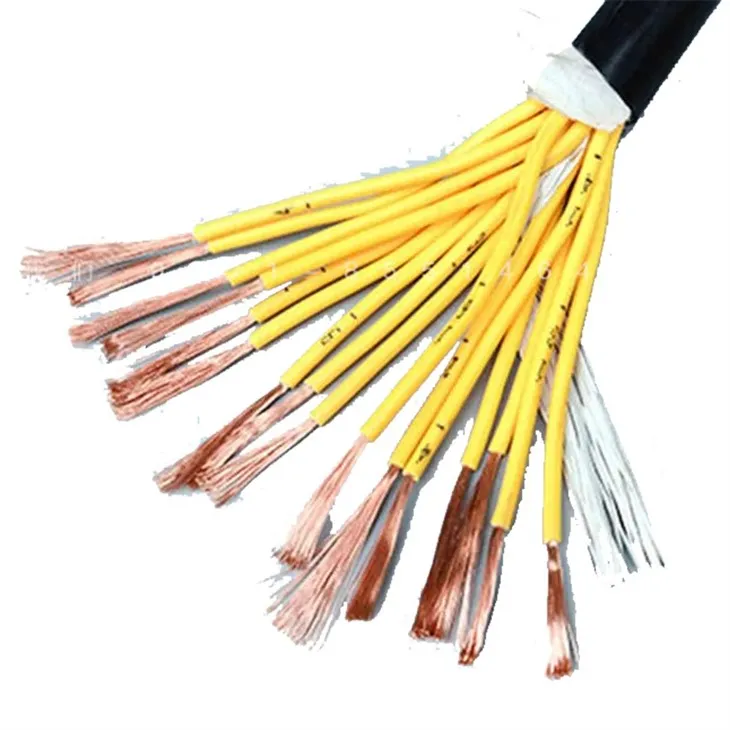

Kev tswj vaj huam sib luag xov hlau yog cov kab hluav taws xob ntau siv hauv kev siv automation thiab ntsuas kev siv. tswj vaj huam sib luag xov hlau tuaj yeem ntsuas thiab tswj kev sib kis ntawm cov txheej txheem automated. tswj vaj huam sib luag xov hlau feem ntau UL ntsuas thiab / lossis CSA ntsuas.
PVC Teeb pom kev zoo Control Cable
PVC hluav taws xob tswj cable, PVC insulated PVC sheathed tswj cable. k: Tswj cable, thawj v: Rwb thaiv tsev khoom polyvinyl chloride, qhov thib ob v: Sheath khoom polyvinyl chloride, p: shielded cable, muaj ib txheej ntawm hlau shielding txheej nyob rau hauv lub cable.
Teeb pom kev zoo Control Cable 2.5 Sy Cable
KVV tswj cable specifications qauv technical parameters
● Rated zog zaus voltage Uo/U yog 450/750V.
● Qhov tso cai rau kev ua haujlwm ntev ntev ntawm tus neeg xyuas pib cable yog 70 degree .
Cov tub ntxhais ntawm cov tswj cable yog tooj liab, qhov nominal cross-section yog 2.5mm2 thiab hauv qab, 2 ~ 61 cores; 4 ~ 6mm2,2 ~ 14 cores; 10mm2,2 ~ 10 cores. Tswj cable ua haujlwm kub: Roj hmab rwb thaiv tsev yog 65 degree, PVC rwb thaiv tsev yog 70 degree thiab 105 degree ob qib.
KYJY tswj cable yog hluav taws xob tsis tshua muaj hluav taws xob hluav taws xob tooj liab core crosslinked insulated steel daim kab xev armored PVC sheathed tswj cable. KYJY tswj cable yog tsim raws li GB/T9330.3-2008 tus qauv.
Hluav taws kub Resistant Control Hlau
Hluav taws xob tswj cable, XLPE hom crosslinked polyethylene, core wire twisted hluavtaws cable, tub ntxhais hlau xim raws li GB / T 5023.1 haum rau ntsuas voltage 450/750V tso qhov kub tsis qis dua 0 degrees.
4 core tswj cable, byj tswj cable yog tsim rau rated voltage 450/750V polyvinyl chloride sheath, XLPE hom crosslinked polyethylene, tub ntxhais hlau twisted hluavtaws cable, tub ntxhais hlau xim nyob rau hauv kab nrog GB / T 5023.1 thiab JB / T 8734.1 nyiam chromatographic xaiv.
Cov kab hluav taws xob tswj yog PVC insulated thiab PVC sheathed tswj cable haum rau kev lag luam thiab kev lag luam mining, lub zog thiab kev thauj mus los, rau AC rated voltage qis dua 450/750 volts los tswj, tiv thaiv kab thiab lwm yam.
4 core shielded tswj cable, haum rau rated voltage 450/750V kev khiav hauj lwm kub tsis siab tshaj 70 degrees, installation kub tsis qis tshaj 0 degrees.
Qhov sib txawv ntawm kev tswj thiab instrumentation cable feem ntau yog siv. Ob leeg tuaj yeem ua tau ruaj khov lossis tso tseg. Rov qab rau hauv "zoo qub hnub" tswj vaj huam sib luag xov hlau (rau cov motors) yuav tsum muaj cov hlau loj dua cov khoom siv hluav taws xob txhawm rau txhawm rau txhawm rau tswj cov dej ntws loj uas yuav tsum tau ua rau lub cev muaj zog pib. Lawv feem ntau raug txiav nyob rau hauv cov ntsia hlau terminals, thiab cov khoom hlau ua rau qhov kev txiav no yooj yim dua.
Cov khoom siv cables tau me dua txoj kab uas hla thiab nquag ua los ntawm cov hlua khi uas hloov tau yooj yim dua. Niaj hnub no, nrog kev siv ntau dua ntawm kev siv hluav taws xob pib tswj, nws yog qhov tseem ceeb ntawm switchgear (breaker) tswj cov xaim uas xav tau txoj kab uas hla loj dua.
Lwm qhov sib txawv ntawm 2 hom yog tias cov cuab yeej siv hluav taws xob feem ntau yog ib qho thaiv (xws li), twisted khub. Qhov kev tsim kho no ua haujlwm kom txo qis "crosstalk" (inductive coupling) uas ua rau kev nyeem ntawv yuam kev rau kev ntsuas. Cov kab hluav taws xob tswj hluav taws xob, uas nws cov cicuits ua haujlwm ntawm 125 VDC, 110 VAC lossis 220 VAC feem ntau tiv thaiv qhov no, thiab yog li tsis tas yuav muaj kev tiv thaiv.
Niaj hnub no, thaum lub teeb liab tswj tau khiav ntawm 24 VDC, qhov thaiv kev sib tw twisted yog qhia rau lawv thiab.
Koj tseem yuav tsum tau ceev faj txog qib sib cais, tab sis tsuav yog koj tab tom cuam tshuam nrog qis DC voltages (28 V siab tshaj), cov khoom siv tiv thaiv, thiab siv cov hlua khi hlua khi hlua khi, koj tuaj yeem muab cov kev tswj thiab ntsuas cores rau hauv ib qho cable uas. xav tau. (Nws tseem yog qhov zoo dua los ua kom lawv sib cais.) Koj kuj yuav tsum khaws cov khoom siv inductive (xws li solenoids thiab relays) cais los ntawm kev ntsuas, vim tias lawv tuaj yeem tsim qhov siab inductive spike voltages thaum lawv de-energized.
Koj tseem yuav tau xaiv cov hlau loj txaus los tuav qhov siab tshaj plaws tam sim no thiab insulated rau qhov siab tshaj plaws voltage.
Koj puas tuaj yeem siv Cov Hluav Taws Xob Hluav Taws Xob Hluav Taws Xob
Tswj vaj huam sib luag xaim hluav taws xob ncaj qha xa hluav taws xob hluav taws xob los ntawm lub zog xa hluav taws xob ntawm lub zog hluav taws xob mus rau cov kab hluav taws xob sib txuas ntawm ntau yam khoom siv hluav taws xob, thaum cov hluav taws xob hluav taws xob siv hluav taws xob feem ntau yog siv rau kev sib kis ntawm cov hluav taws xob muaj zog hauv tiam, kev faib tawm, kev sib kis, kev hloov pauv, thiab cov kab hluav taws xob, thiab tam sim no dhau los yog loj. Cov hluav taws xob hluav taws xob siv hluav taws xob yog siv nyob rau hauv txoj kab tseem ceeb ntawm lub zog hluav taws xob xa mus thiab faib cov khoom siv hluav taws xob loj.
Tswj vaj huam sib luag xov hlau yog tsim los ua raws li kev ruaj ntseg zoo thiab cov txheej txheem tswj kom zoo. Lub hom phiaj los muab kev pabcuam rau lub sijhawm teem tseg ua ntej, cov xov hlau tswj vaj huam sib luag yuav ua tau zoo rau tag nrho lub neej.
Qhov zoo ntawm kev tswj vaj huam sib luag xov hlau muaj xws li:
● Lub teeb yuag
● Yooj yim kom haum rau txhua tus qauv
● Mechanical efficiency
● Siv tau rau ntau qhov chaw
● Kev tiv thaiv kev cuam tshuam ua haujlwm
● Lub neej ua haujlwm ntev
● Hnav-resistant yam ntxwv
● Cov khoom tsis muaj corrosive
Thaum muaj ntau hom kev tswj vaj huam sib luag xov hlau, feem ntau ntawm lawv muaj cov kev tsim kho zoo sib xws. Lawv muaj xya tus ib pob ntawm cov hlau. Nyob rau hauv nruab nrab ntawm ib tug tswj vaj huam sib luag hlau yog ib tug ib tug hlau bundles, uas yog surrounded los ntawm rau lwm cov hlau bundles.
Feem ntau hom kev tswj vaj huam sib luag xov hlau yog ua los ntawm cov hlau. Nrog rau qhov hais tias, qee qhov ntawm lawv yog ua los ntawm carbon steel, hos lwm tus yog ua los ntawm stainless hlau. Carbon steel tswj vaj huam sib luag xov hlau muaj zog dua, tab sis lawv tsis muaj corrosion-resistant zog ntawm stainless hlau. Tsis hais txog ntawm cov khoom siv, tswj vaj huam sib luag xov hlau twb muaj zog vim tias lawv tau tsim los ntawm ntau lub pob ntawm cov hlau.
Kuv Yuav Ua Li Cas Xaiv Tswj Vaj Huam Sib Luag Hlau Loj
Ua ntej, ntsuas qhov siab tshaj qhov tso cai voltage poob.
Qhov thib ob, xam cov load tam sim no.
Thib peb, koj yuav tsum paub tias cov cable uas tsim nyog tshaj plaws yuav yog ib qho uas muaj qhov ntsuas tam sim no ze tshaj rau cov khoom thauj tam sim no suav. Ntau cov kab kos nrog qhov ntau thiab tsawg thiab cov kev ntsuas tam sim no tau yooj yim muaj nyob hauv online. Siv daim ntawv qhia zoo li no los xaiv cov kab tsim nyog.
Plaub, siv daim ntawv qhia los nrhiav qhov ntsuas hluav taws xob poob hauv meters lossis 100ft, raws li koj qhov kev nyiam.
Thib tsib, siv cov kab hauv qab no loj thiab cov qauv ntsuas tam sim no rau kev suav cov hluav taws xob poob raws qhov ntev ntawm cov kab hluav taws xob.
● Yog tias koj xav xam qhov poob ntawm qhov voltage ib 'meter', (Qhov tseeb qhov ntev ntawm Circuit Court x volt poob rau 1m) / 100
● Yog tias koj xav pom qhov poob hauv qhov hluav taws xob hauv 100ft (Qhov tseeb qhov ntev ntawm Circuit Court x volt poob rau 100ft) / 100
Tom qab xam cov saum toj no, koj yuav tsum muab tus nqi uas koj tau txais nrog lub load yam:
Load factor=Load tam sim no yuav tsum tau coj los ntawm Cable / Rated Tam sim no ntawm Cable (uas yuav tsum tau muab rau hauv daim ntawv koj hais txog).
Tam sim no, koj tau tuaj txog ntawm tus nqi poob qis ntawm lub cable thaum lub sijhawm thauj khoom tam sim no dhau los ntawm nws.
Yog tias tus nqi no tsawg dua qhov siab tshaj qhov tso cai qhov hluav taws xob poob, ces qhov loj ntawm cov cable xaiv yuav tsum yog.
Yog hais tias tus nqi siab dua tus nqi ntawm qhov siab tshaj plaws tso cai voltage poob, ces qhov voltage poob rau qhov loj dua-loj cable txuas ntxiv raws li daim ntawv xa mus yuav tsum tau suav. Cov txheej txheem no yuav tsum tau txuas ntxiv mus kom txog thaum tus nqi ntawm qhov poob qis dhau los ua tsawg dua qhov siab tshaj qhov tso cai qhov hluav taws xob poob nqi.
Muaj pes tsawg cores puas muaj ib tug tswj vaj huam sib luag hlau muaj
Tus naj npawb ntawm cov cores ntawm lub hwj chim cable yog me me, nrog rau ib tug tub ntxhais, ob cores, 3 cores, 4 cores thiab 5 cores. Raws li qhov xav tau ntawm daim phiaj hluav taws xob, qhov siab tshaj plaws yog 5 cores. tswj vaj huam sib luag xov hlau yog siv los xa cov teeb liab tswj, uas muaj ntau cov cores, xws li 2 cores mus rau 61 cores lossis ntau dua. tswj vaj huam sib luag xov hlau kuj tseem siv ntau cov tub ntxhais hlau cov qauv thiab kev tiv thaiv kev ntsuas kom tau txais cov txiaj ntsig zoo ntawm electromagnetic compatibility.
Dab tsi yog Tswj Vaj Huam Sib Luag Hlau Ua Los ntawm
Lub vaj huam sib luag tswj cov hlau yog tsim los ntawm cov khoom siv hluav taws xob (xov hlau), uas feem ntau yog tsim los ntawm cov hlau galvanized, stainless hlau lossis lwm yam alloys. Tswj vaj huam sib luag xov hlau yog ib qho kev sib dhos los yog cov txheej txheem ntawm cov cables thiab cov khoom siv, xws li lub pob thiab shank haum, qhov twg muaj kev tawm tswv yim lossis kev ua haujlwm uas ua rau muaj qhov tshwm sim lossis qhov tshwm sim.
Lub tswv yim rau kev txhim kho Cov Tswj Vaj Huam Sib Luag Hlau
● Cov tub ntxhais conductive ntawm cables
Rau cov tub ntxhais conductive, koj yuav tsum paub tias cov khoom siv ntawm cov tub ntxhais conductive yog ua los ntawm, ntau npaum li cas cov tub ntxhais hla ntu yog, thiab pes tsawg fibers me me hauv cov tub ntxhais. Koj yuav muaj peev xwm xav txog kev tsim kho tsim nyog los xyuas kom meej tias qhov kev sib kis tau zoo ntawm cov cable tsis raug txo.
Cov khoom siv tseem ceeb thiab cov tub ntxhais hla ntu yuav cuam tshuam rau kev sib kis. Tus naj npawb ntawm cov fibers me me yuav ua rau kom qhov softness ntawm cov tub ntxhais (ua kom lub vojvoog khoov ntawm lub cable) thiab ua rau kom muaj peev xwm nqus tau qhov kev co los ntawm cov tshuab ib puag ncig.
● Shield daim kab xev
Shield daim kab xev pab tswj fais fab cables kom xa cov teeb liab zoo dua. Lawv yog ua los ntawm nyias aluminium ntawv ci los yog tin-plated tooj liab mesh. Cov khoom ua los ntawm aluminium ntawv ci yog cov khoom zoo heev, yog li nws yog ib qho tsim nyog yuav tsum tau them sai sai rau qhov tso cai khoov lub vojvoog kom tsis txhob cuam tshuam cov txheej txheem kev cuam tshuam ntawm kev tswj vaj huam sib luag hlau.
● Voltage ntawm cables
Kev khiav hauj lwm voltage kuj yog ib qho tseem ceeb uas koj yuav tsum xav txog thaum txhim kho fais fab cables. Feem ntau, cov cables uas muaj qhov hluav taws xob ntawm 300V / 500V lossis 0.6 / 1kV yuav raug xa mus rau cov kab hluav taws xob sib cais los ntawm cov tshuab uas muaj hluav taws xob tsawg<100V.
Ua ntej txhim kho cov tswj vaj huam sib luag xaim, koj yuav tsum ua tib zoo kawm txog cov kev cai ntawm qhov project kom muaj kev nkag siab ntawm qhov chaw ua haujlwm, thiab cov khoom sib txuas uas lub hwj chim cable yuav tsum raug nthuav tawm txhua hnub.
Raws li kev teeb tsa ib puag ncig, cov kav hlau tswj vaj huam sib luag feem ntau tau muab faib ua ntau hom nrog cov yam ntxwv xws li kev cuam tshuam cov kab hluav taws xob, roj, thiab cov tshuaj tiv thaiv kab mob, hluav taws kub tiv thaiv cables, thiab lwm yam.
Nyob rau hauv tus txheej txheem ntawm kev txhim kho vaj huam sib luag xov hlau, muaj ob yam tseem ceeb uas peb yuav tsum tau them sai sai rau lub installation txoj hauj lwm ntawm lub hwj chim cables thiab lub ambient kub ntawm lub hwj chim cables.
Ob qho tib si saum toj no cuam tshuam ncaj qha rau amperage. Qhov ntawd cuam tshuam rau cov txheej txheem xa hluav taws xob rau cov khoom siv hauv cov txheej txheem tsim khoom.
● Kev teeb tsa txoj haujlwm nruab nrab ntawm lub hwj chim cables
Rau qhov chaw nruab nrab ntawm cov cables, qhov ua rau qhov sib txawv ntawm amperage yog vim lub tshav kub generated nyob rau hauv lub hwj chim cable. Thaum lub sij hawm ntawd, hluav taws xob yuav ploj vim cov txheej txheem ntawm kev hloov hluav taws xob hluav taws xob mus rau lub zog hluav taws xob.
Yog tias cov cables nyob ib sab ntawm ib leeg, thaum lub sijhawm xa hluav taws xob, qhov kub ntawm cov cables yuav resonate, ua rau tag nrho cov kub nce, thiab txo cov amperage hauv cable.
● Ambient kub ntawm lub hwj chim cable.
Kev teeb tsa ambient kub muaj qhov cuam tshuam zoo rau lub amperage ntawm cable. Qhov kub ntawm 30 degree yog suav tias yog qhov zoo tshaj plaws rau tam sim no thaum lub coefficient ntawm kev hloov pauv tsis dhau, tab sis raws li qhov kub nce mus txog 60 degree, lub amperage yuav poob qis heev. Yog li ntawd, nyob rau hauv tus txheej txheem ntawm kev txhim kho vaj huam sib luag xov hlau, peb yuav tsum ua tib zoo xav txog lub installation ib puag ncig nrog rau kev npaj ntawm cables kom cov cables ua hauj lwm nrog rau qhov zoo tshaj plaws efficiency.
Peb lub Hoobkas
Liaoning Pengcheng Cable Co., Ltd. tau tsim muaj nyob rau hauv 1990, nyob rau hauv lub qaum teb sab hnub tuaj centre ntawm Shenyang & Tieling lag luam koog tsev kawm ntawv, yog lub comprehensive zog ntawm lub forefront ntawm hlau thiab cable manufacturing tuam txhab. Pengcheng Cable muaj ib tug xov tooj ntawm thoob ntiaj teb advanced ntau lawm kab, niaj hnub factories, muaj chaw ua si ntawm integrated hlau thiab cable manufacturing tuam txhab. Lub tuam txhab tam sim no nyob rau hauv Xintaizi Industrial Park, Liaoning Province, npog thaj tsam ze li ntawm 150 ev kawj, lub Hoobkas cheeb tsam ntau dua 50 daim av. Lub tuam txhab tau cog lus rau kev tshawb fawb & kev tsim kho thiab tsim cov khoom siv hluav taws xob hloov pauv hluav taws xob hluav taws xob hluav taws xob, mica siv cov ntxhia insulated corrugated tooj liab sheathed cables, thiab tshiab high conductivity 8000 series ntawm anti-siab thiab creep-resistant aluminium alloy core interlocking armored fais fab cables, xws li zoo li halogen-dawb tsis muaj pa taws hluav taws xob qis hluav taws xob thiab cov xaim zoo tib yam thiab cable thiab lwm yam kev qhia tag nrho ntawm cov khoom lag luam zoo cable kev tshawb fawb thiab kev tsim kho, tsim, tsim, kev lag luam thiab kev pabcuam. Pengcheng cov khoom siv dav siv hauv cov phiaj xwm ntse, lub zog hluav taws xob, lub tsev ntsuab, lub Hoobkas ntse thiab tsev kho mob thiab lwm qhov chaw. Tam sim no muaj ib tug xov tooj ntawm siv tau patents.
Peb Daim Ntawv Pov Thawj
Lub tuam txhab cov khoom lag luam tau dhau ISO9001 / IATF16949 kev tswj hwm qhov system ntawv pov thawj, ISO14001 ib puag ncig kev tswj hwm daim ntawv pov thawj, ISO45001 Kev Tswj Xyuas Kev Noj Qab Haus Huv thiab Kev Tswj Xyuas Kev Nyab Xeeb Kev Nyab Xeeb, ISO10012 kev ntsuas kev tswj hwm ntawv pov thawj thiab lwm yam 8 qhov kev tswj xyuas qhov system ntawv pov thawj. Raws li daim ntawv tso cai tsim khoom hauv lub tebchaws, daim ntawv pov thawj cov khoom lag luam hauv tebchaws (3C daim ntawv pov thawj), PCCC daim ntawv pov thawj thiab Tuam Tshoj Zoo CQC daim ntawv pov thawj, nplaim hluav taws retardant daim ntawv pov thawj, hluav taws kub retardant daim ntawv pov thawj thiab lwm yam ntawv pov thawj.
