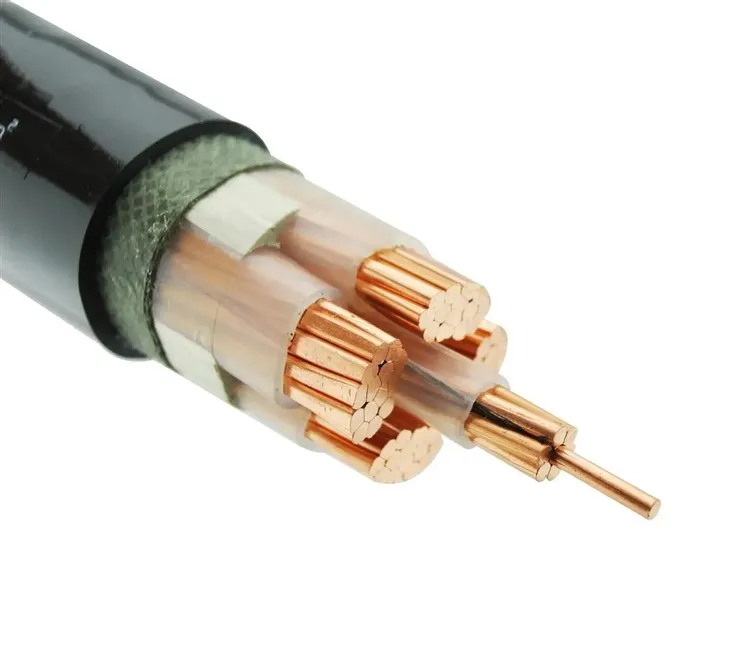

Armored cables yog ua los ntawm conductors ntawm cov ntaub ntawv sib txawv nyob rau hauv insulated hlau bushings, uas yog machined rau hauv ib tug saj zawg zog khoom sib dhos. Armored cable muaj xws li armored thermocouple, armored thermal kuj, armored rhaub thiab armored txhuas, feem ntau yog siv nyob rau hauv chemical kev lag luam, metallurgy, machinery manufacturing, fais fab tuag thiab scientific ntsuas kub ntsuas, teeb liab kis tau tus mob thiab tshwj xeeb cua sov, qhov loj tshaj plaws yog armored thermocouple.
Nta
High durability
Kev tiv thaiv kev siv tshuab: Cov txheej armor feem ntau yog ua los ntawm cov hlau xaim lossis steel siv, uas tuaj yeem tiv taus qhov cuam tshuam sab nraud thiab siab thiab tsim nyog rau kev tsim kho hnyav. Kev tiv thaiv kev laus: Cov khoom siv sab nrauv xws li PVC muaj kev tiv thaiv kev laus zoo thiab tuaj yeem tswj nws lub cev thiab tshuaj lom neeg tsis hloov pauv hauv kev siv mus ntev.
Kev nyab xeeb siab
Kev ua haujlwm ntawm nplaim taws: Ntau lub zog-16mm-armoured-cables yog ua los ntawm cov khoom siv hluav taws xob, uas tuaj yeem tiv thaiv kev sib kis ntawm hluav taws thaum muaj hluav taws kub thiab yuav lub sijhawm rau kev khiav tawm ntawm cov neeg ua haujlwm. Waterproof thiab noo noo-pov thawj: Cov txheej txheej sab nrauv thiab cov cuab yeej ua haujlwm ua haujlwm ua ke ua kom cov kab hluav taws xob muaj cov khoom tsis muaj dej tsis zoo thiab cov dej tsis zoo, haum rau cov chaw ntub dej xws li kev faus hauv av.
Kev ua haujlwm siab
Tsawg tsis kam: Tus neeg xyuas pib sab hauv feem ntau yog ua los ntawm high-purity tooj liab nrog tsawg resistivity, uas tuaj yeem txo qhov poob thaum lub zog xa mus. Piv txwv li, lub resistivity ntawm high-purity tooj liab yuav ua tau tsawg li 0.01724Ω·mm² / m. Lub peev xwm nqa tau siab tam sim no: Vim muaj qhov loj ntawm qhov chaw hla ntawm lub cable (16mm²), nws tuaj yeem nqa tau qhov tam sim no loj kom tau raws li qhov xav tau ntawm cov khoom siv hluav taws xob siab.
Kev tsim kho
Cov khoom siv rwb thaiv tsev
PVC lossis XLPE (cross-linked polyethylene) feem ntau yog siv los ua cov khoom siv rwb thaiv tsev, uas muaj cov khoom siv hluav taws xob zoo thiab ua haujlwm kub.
Sheath khoom
Lub tsho sab nrauv feem ntau yog ua los ntawm cov khoom siv PVC, uas tsis yog tsuas yog muaj cov khoom siv tiv thaiv zoo xwb, tab sis kuj tseem tiv thaiv kev yaig los ntawm cov dej noo thiab tshuaj lom neeg.
Cov khoom siv conductor
Tus neeg xyuas pib sab hauv feem ntau yog tsim los ntawm cov hlau tsis muaj tooj liab, uas yog cov khoom siv hluav taws xob zoo heev uas tuaj yeem muab kev sib kis tau zoo tam sim no.
Armor txheej
Cov txheej armor feem ntau yog ua los ntawm steel hlau lossis steel siv, uas muab kev tiv thaiv lub cev ntxiv rau lub cable, ua kom nws tiv taus ntau dua sab nraud quab yuam thiab kev ntxhov siab, thiab tsim nyog rau qhov chaw hnyav xws li kev faus hauv av ncaj qha.
FAQs
Muaj pes tsawg amps tau 16 hli armored cable coj?
16mm x 3 Core SWA Cable Ib Meter - 94 amp rated SWA armor cable, tsim los nqa hluav taws xob rau ntau yam kev siv thiab khoom siv. Ordinarily koj yuav pom no cable powering loj outhouses, rhiav, sheds thiab lwm yam. Raws li nws yog rated rau 94 amps, nws yog zoo meej rau muab hwj chim nyob rau hauv ntev kev deb.
Dab tsi yog qhov txawv ntawm armored cable thiab SWA cable?
SWA cables siv steel hlau armour, ua rau lawv tsim nyog rau cov ntawv thov uas yuav tsum tau muaj kev tiv thaiv zoo heev. AWA cables, ntawm qhov tod tes, siv txhuas hlau armour, ua rau lawv sib zog thiab kev xaiv rau kev teeb tsa qhov hnyav yog qhov kev txhawj xeeb, xws li kev faib hluav taws xob hauv chaw tsim khoom.
Qhov siab tshaj plaws tam sim no muaj peev xwm ntawm 2.5 hli armored cable yog dab tsi?
Qhov siab tshaj plaws tam sim no muaj peev xwm ntawm 2.5 mm² armored cable tuaj yeem sib txawv nyob ntawm seb hom cable tshwj xeeb, cov khoom siv rwb thaiv tsev, thiab kev teeb tsa. Txawm li cas los xij, rau lub hom phiaj dav dav, qhov ntsuas siab tshaj plaws tam sim no rau ib leeg-ntxhais 2.5 mm² tooj liab tus neeg xyuas pib nrog PVC rwb thaiv tsev nyob rau hauv cov xwm txheej ib txwm muaj (piv txwv li, clipped ncaj qha, nyob rau hauv qhov kub thiab txias ntawm 30 degree) yog nyob ib ncig ntawm 27 txog 32 amperes (A).
Kuv xav tau dab tsi loj breaker rau 16mm cable?
Yam tsawg kawg 64 mus rau 72 amps tsis tu ncua nyob rau hauv 16 mm Hla ntu thaj tsam tooj liab cable. Tsis tas li ntawd nco ntsoov: lub tsev code yuav qhia 60 amp breaker rau qhov loj me no. Koj yuav tsum tshawb xyuas cov cai hauv zos kom paub meej, tshwj xeeb tshaj yog thaum pej xeem tuaj yeem tau txais kev pabcuam los ntawm qhov kev tsim kho no.
Ntev npaum li cas armored cable yuav tsum?
Qhov tsawg kawg nkaus qhov tob ntawm 450mm underground yog feem ntau pom zoo rau kev xyaum zoo. Qhov no nce mus rau 600mm nyob rau hauv qhov chaw uas muaj peev xwm ntau dua rau kev cuam tshuam.
Koj puas tuaj yeem tawm armored cable saum av?
Tau kawg, koj tuaj yeem ua tau, tab sis yog vim li cas rau kev qhia txog tus nqi ntxiv ntawm lub armored cable yog los tiv thaiv nws los ntawm kev puas tsuaj thaum nws khiav hauv av tawm ntawm qhov pom thiab tej zaum yuav raug ntaus los ntawm spade. Rau tib lub laj thawj, yuav tsum muaj daim kab xev faus rau hauv qab ntawm qhov chaw kom qhia tau tias muaj ib qho armored cable faus tob.
Puas yog armored cable xav tau cov kav dej?
Armored cable tsis tas yuav tsum tau conduit rau installation, raws li armoring muab txhua yam kev tiv thaiv thiab muaj peev xwm tiv taus ib puag ncig hnyav piv rau unarmoured cable. Txawm li cas los xij, nyob rau qee qhov xwm txheej, xws li thaum xa cov kab hluav taws xob los ntawm thaj chaw uas muaj kev cuam tshuam ntawm electromagnetic siab, qhov kub thiab txias, lossis qhov twg nws yuav raug rau cov tshuaj lom neeg, kev tiv thaiv ntxiv xws li cov kav dej kuj tseem xav tau. Conduit tuaj yeem muab cov txheej txheem ntxiv ntawm kev nyab xeeb thiab ua raws li cov cai hauv tsev lossis cov qauv hluav taws xob.
Koj puas xav tau lub ntiaj teb ob qhov kawg ntawm armored cable?
Raws li qhov yuav tsum tau ua yam tsawg kawg nkaus, lub cable yuav tsum tau earthed yam tsawg kawg yog ib qho ntawm nws ob qhov kawg, lub ntsiab lus nyob rau hauv qhov kev tshwm sim ntawm ib tug txhaum los yog luv luv-circuit txoj kev ncaj nraim rau hauv av yuav ua tiav.
Koj puas tuaj yeem muab tso rau hauv armored cable?
Armored Cable Joints feem ntau yog siv los koom nrog ob daim ntawv sib cais lossis qhov ntev ntawm cable ua ke. siv ib tug polyutherene, ob feem resin. Cov resin nws tus kheej yog muaj nyob rau hauv ib lub hnab ntim ntim nrog lub hau npog rau qhov nkag / sau qhov.
Puas yog armored cable tau ncaj qha faus?
Teck 90 lossis Teck Style armored cables yog siv rau hauv kev lag luam thiab kev lag luam kev lag luam uas ib puag ncig xav tau kev tiv thaiv ntxiv lossis ua kom ntev. Cov cables no tuaj yeem muab faus ncaj qha thiab ntsia hauv cov kav dej.
